Four Stroke Simulator
Simulation is fundamental in the development of a 4-stroke
engine. There are various simulation programs available on the
market, from the more sophisticated ones, which are often very
complex and expensive, to the simpler ones, which however,
although not very easy to use, are not very precise. For this
reason, thanks to over 20 years of experience in simulation, we
wanted to create a product for single cylinder engine which on the one hand was very easy
to use, and on the other provided consistent results to carry
out a first important step of optimizing the head (valve and
lift dimensions
and timing), and the geometry of the intake and the exhaust
system |
|
|
|
|
|
How it works?
|
The purpose of the software Four Stroke Simulator is to give to
technicians, mechanics, and tuners a tool that helps them to develop
the 4-stroke single cylinder engine in the desired direction. The
key to obtain the best performance, is to obtain the perfect tuning
between the valve timing and the intake and exhaust geometries in
the desired engine speeds. This is not easy, therefore proceeding by
trial and error often does not lead to the desired results. Over the years,
development aid formulas have been developed, after when the level
of the engines is grew, it became essential to use simulation
software. On the market you can find very complex and expensive
programs, which require high skills to use them, and more accessible
programs, which however often doesn't combine simplicity and
precision.
With Four Stroke Simulator we've wanted to create a product for single
cylinder engine that on the one hand was very easy to use, and on
the other provided consistent results to carry out a first important
step of optimizing the head (valve and lift dimensions and timing),
and the geometry of the intake and the exhaust system.
This has been possible by setting in the software predefined model
for the combustion, and focusing the attention on the
thermo-fluid dynamic calculation of the engine. In fact, the combustion
is very difficult aspect to simulate, and even
with the most sophisticated calculation models, ofter are necessary
experimental tests to calibrate the model as best as possible,
therefore the complexity of the program would have increased
considerably, without but be sure of being able to obtain consistent
indications for this area too.
This choice allows you to have a simulation program that on the one
hand requires very little data to carry out the calculation, and on
the other allows you to obtain those fundamental results to make all
the evaluations useful for understanding how to modify the timing,
the dimensions of the valves, the lifts, and the geometry of the
intake and the exhaust
system, to improve the torque and power curves in the desired
direction.

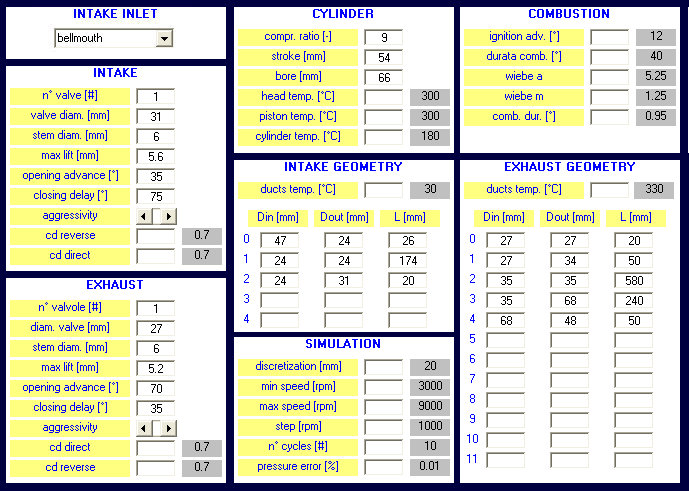

In summary, the use is very simple, you must insert into the
software the geometric characteristics of the engine and of its

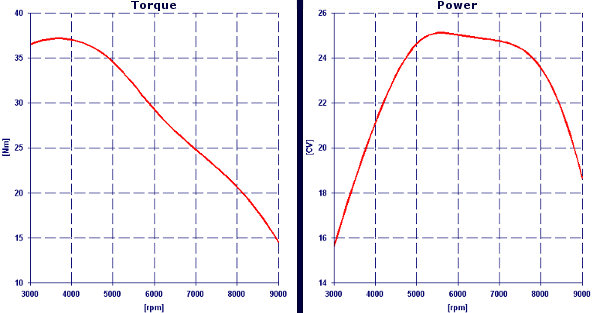

components and carry out the simulation calculation. At the end the
software will directly show the torque and power curves that the
engine can theoretically provide with the characteristics entered.
This will be the reference from which to start to test the effect
that can have on the performance the modifications that you plan to
make to the engine.

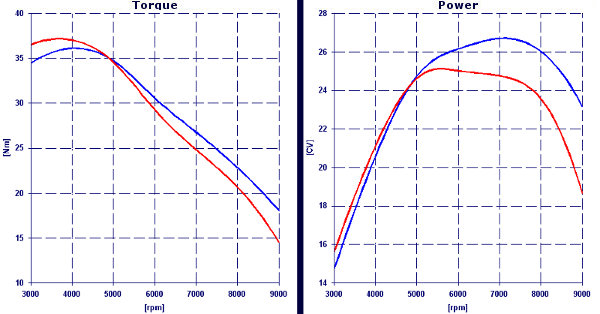

In fact, you can easily insert into the software the modification
that you intend to make, and by carrying out a new simulation, at
the end you will directly see the comparison of the torque and power
curves, between the initial solution and the modified one, it will
therefore be easy to understand whether the modification is
successful or not, in the desired direction.
Thanks to the software Four Stroke Simulator, you will therefore have
a fundamental tool for preventively testing the modifications to the
timing and the dimensions of the valves, the lifts, and to the geometry of the
intake and the
exhaust system, which you intend to make to the engine. It will
therefore be easy for you to identify the modifications of
development on which to proceed to improve the engine performance in
the desired direction.
In the presentation
you can see again more in the details the features of the software.
|
