SET-UP REED VALVE Software per la messa a punto e lo sviluppo del pacco lamellare e del sistema di aspirazione 2 Tempi - by NT-Project
click the image
for the presentation

SET-UP REED VALVE is a software of excellence for the tuning and the development of the reed valve and the intake system of a 2-stroke racing engine. In fact, it allows you to calculate the intake efficiency of engine according to the characteristics of the reed valve petals, the carburetor and intake manifold used. This is essential to optimize the performance of the engine in the desired range and enhance the performance of your engine according to the requirements dictated by the characteristics of the track and driving style of the driver.
PRESENTATION INFORMATION
ACTUALLY THE SOFTWARE IS AVALAIBLE ONLY IN ITALIAN LANGUAGE WRITE US TO HAVE INFORMATION ABOUT ENGLISH VERSION

How it works?

SET-UP REED VALVE is a software that entering the characteristics of reed valve, manifold and carburetor in less than a minute allows you to see how engines works in intake period. With this support you can then make appropriate changes and to find the set up more effective to optimize the engine performance to suit your needs.

The intake efficiency is determined mainly by two factors acting simultaneously and influence each other themselves, the dynamic behavior of the reed petals and the trend fluid dynamics of pressure waves in the intake duct and in the crankcase.

These are phenomena extremely complex that NT-Project has studied in detail and modeled through refined algorithms. The calculations were verified by comparison with data of intake-carter pressure and the tip displacement of the reed petals measured experimentally on a 2-stroke engine with reed valve induction and reported in the literature.

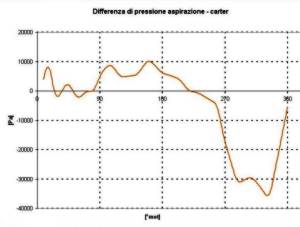

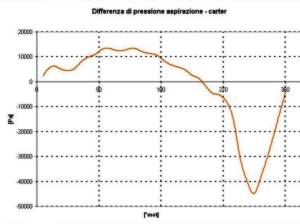

Differenza di pressione aspirazione - carter per confronto sperimentale - by NT-Project Differenza di pressione aspirazione - carter per confronto sperimentale - by NT-Project

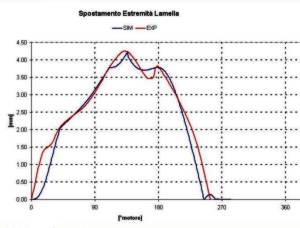

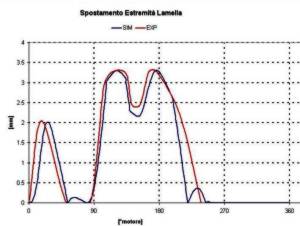

Confronto numerico-sperimentale movimento dinamico lamella alle condizioni di pressione sopra mostrate - by NT-Project Confronto numerico-sperimentale movimento dinamico lamella alle condizioni di pressione sopra mostrate - by NT-Project
As you can see from the graphs shown, the calculation models used in SET-UP Reed Valve are able to fully take the phenomena involved and therefore provide extremely reliable results.

Results

INTAKE EFFICIENCY

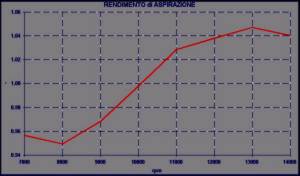

Rendimento di Aspirazione motore a 2 tempi lamellare - SET-UP REED VALVE - by NT-Project



The intake efficiency is strongly influenced by the characteristics of the reed valve, of the petals, of the carburetor and of the manifold, and even small changes can lead to significant variations.

With SET-UP REED VALVE is therefore possible to treat the details of tuning for optimizing the performance for the characteristics of a specific track or for a driver, getting those benefits that are important in race racing to make the difference and to win.

In addition to tuning the software
SET-UP REED VALVE is also crucial in development of the reed valve or of the intake system, in facts it allows to move in the right direction in relation to the needs to benefit of time and costs.

The software SET-UP REED VALVE in addition to showing the intake efficiency of engine, shows the following results:
RPM OF REED PETALS RESONANCE This value is fundamental to understand regardless of the performance if there is a risk of running into reliability problems
BACKFLOW FROM INTAKE
This value provides a clear indication of the response time of the reed petals to the pressure conditions upstream and downstream of the reed valve

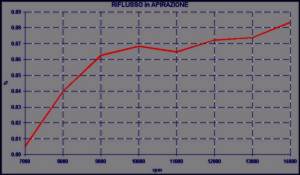

Riflusso in Aspirazione motore a 2 tempi lamellare - SET-UP REED VALVE - by NT-Project
MEDIUM and MAXIMUN STRESS of REED PETALS
these values are essential to make comparisons of reliability to be one solution to another so you can also get information on the duration and strength of the choices made.

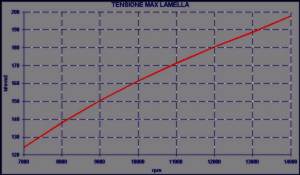

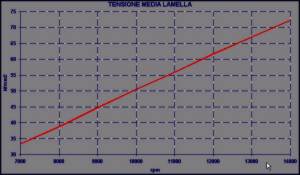

Tensione massima lamella motore a 2 tempi lamellare - SET-UP REED VALVE - by NT-Project Tensione media lamella motore a 2 tempi lamellare - SET-UP REED VALVE - by NT-Project
